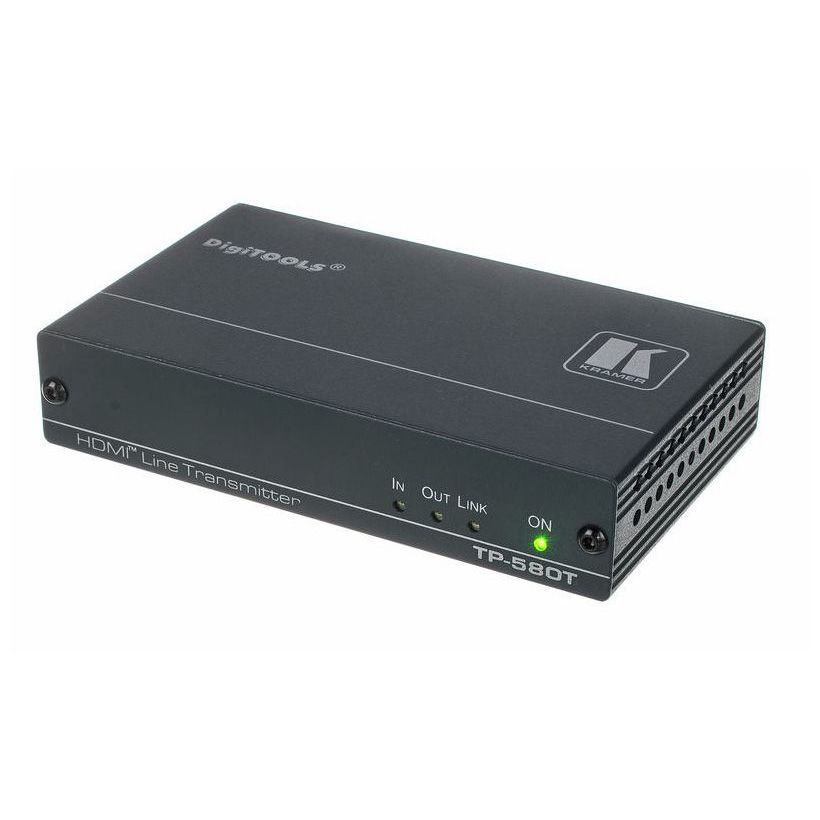

Kramer TP-580T HDBase 1.0 Transmitter

• Twisted Pair transmitter for 4K 60 4:2:0 UHD HDMI (HDCP 2.2), RS-232 and IR via HDBaseT
• Converts the input signals into a HDBaseT twisted pair signal for transmission via CAT copper cable up to 40 m to the TP-580R receiver (Art.437474 - not included)
• High-performance range extender: can be connected directly to HDBaseT-compliant commercially available AV products
• HDMI signal extension: HDMI 2.0 and HDCP 2.2 compliant
• Deep Colour, x.v.Color, Lip Sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS-HD, 2K, 4K and 3D are supported
• EDID and CEC signals are passed through from the source to the display
• Intelligent EDID Processing 8 (Kramer's I-EDIDPro): Intelligent EDID Processing
• Processing and pass-through algorithms enable plug-and-play operation with HDMI sources and displays
• Multi-channel audio extension: up to 32 channels of uncompressed digital stereo signals to support studio-quality surround sound
• RS-232 bidirectional extension: serial interface data flows in both directions and allows device control
• Bi-directional IR extension: IR data flows in both directions over the interface, allowing remote control of peripherals at both ends of the extension

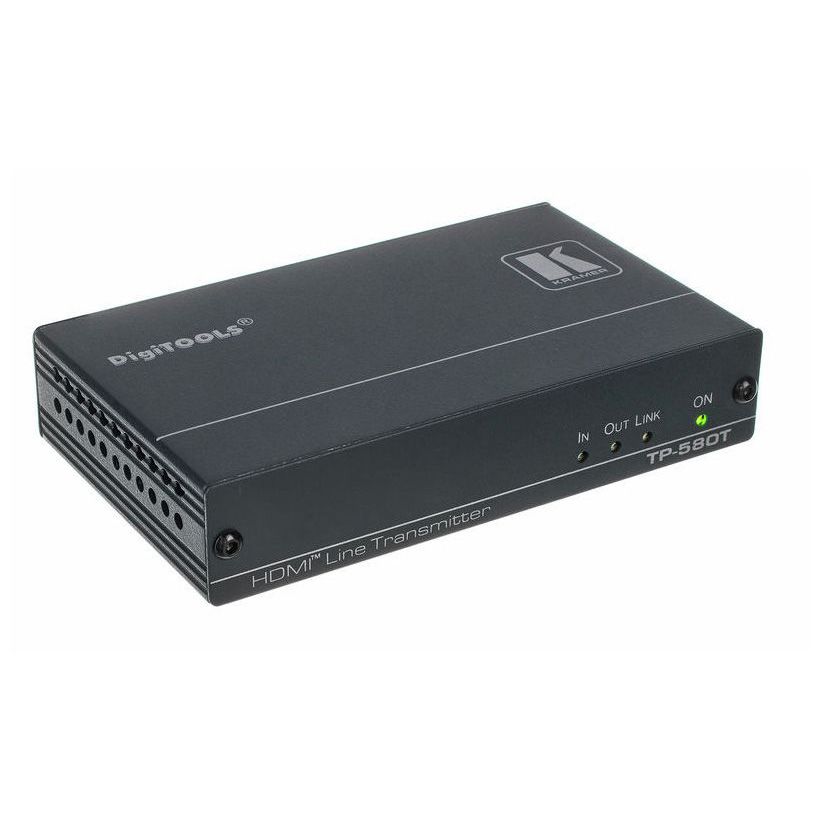

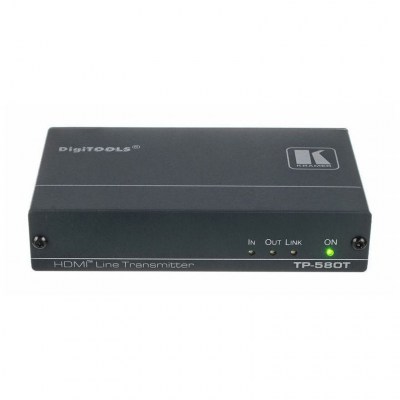

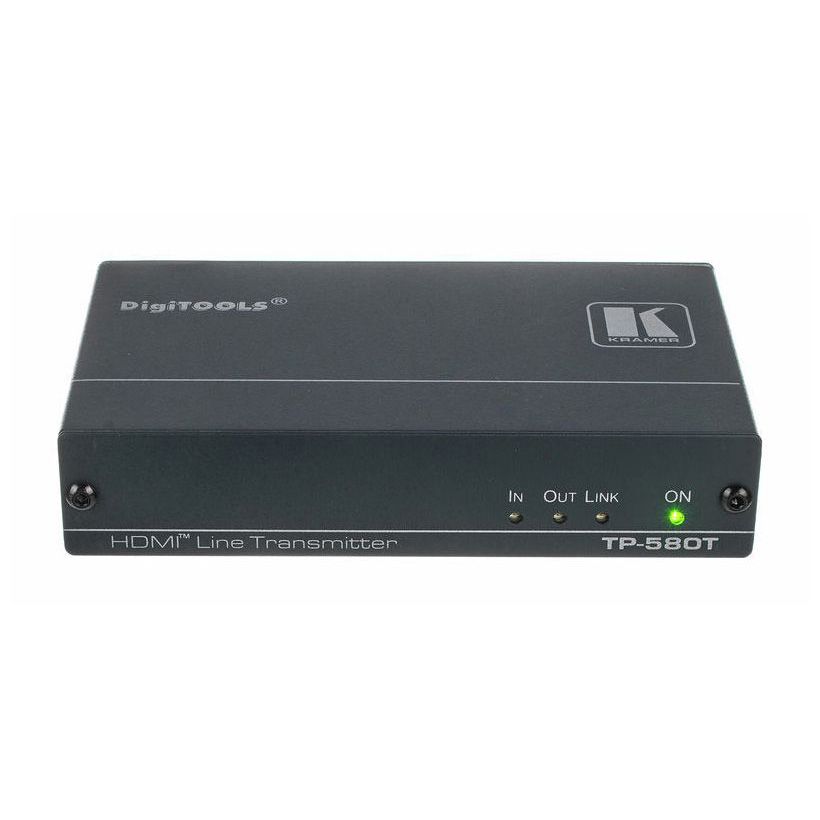

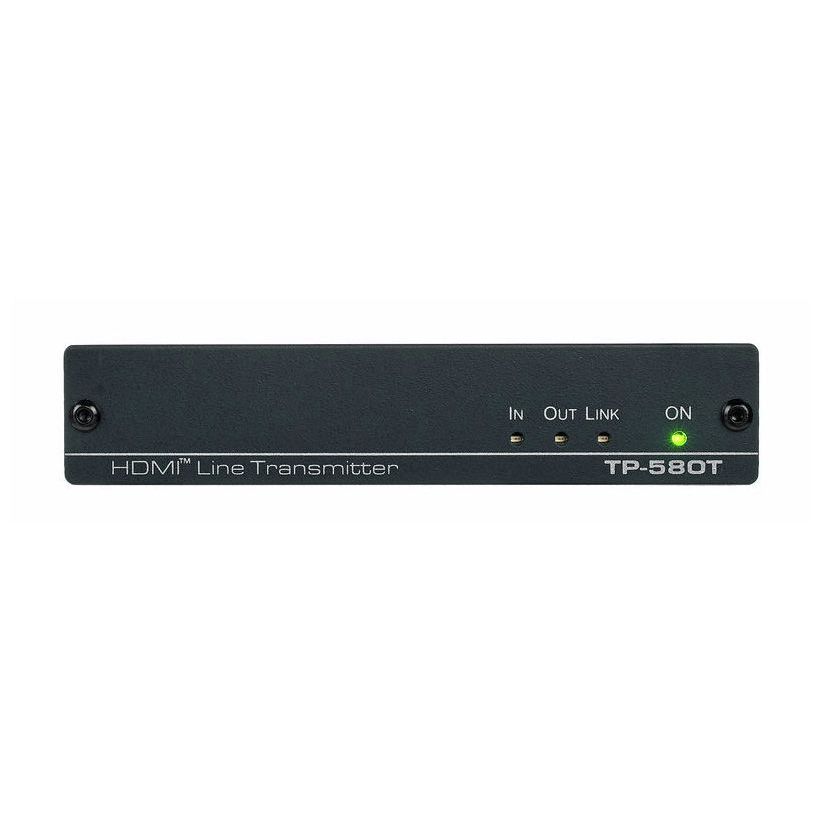

• LED status indicators HDMI and HDBT

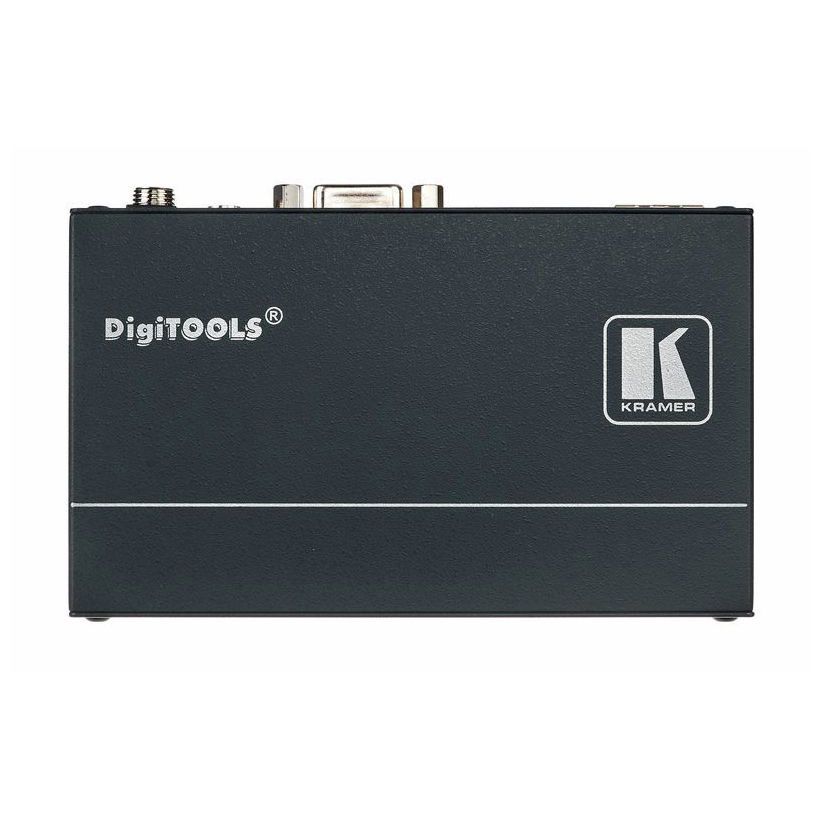

• Compact fanless DigiTOOL housing

Technical data:

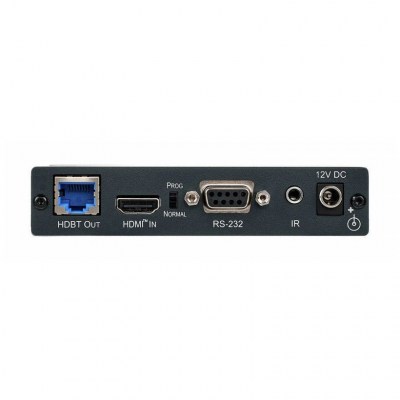

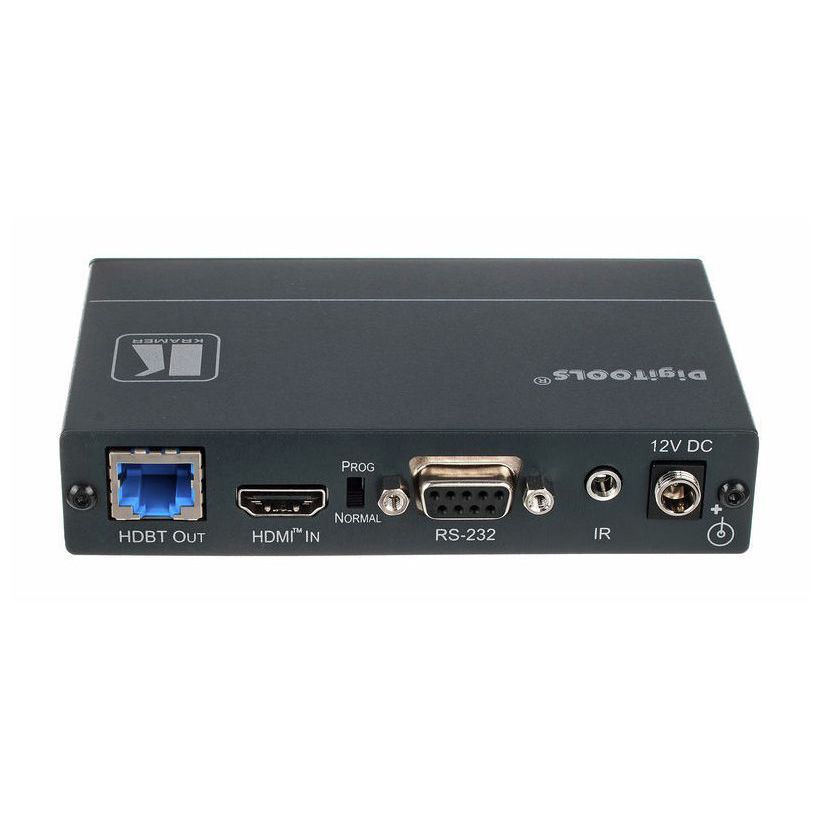

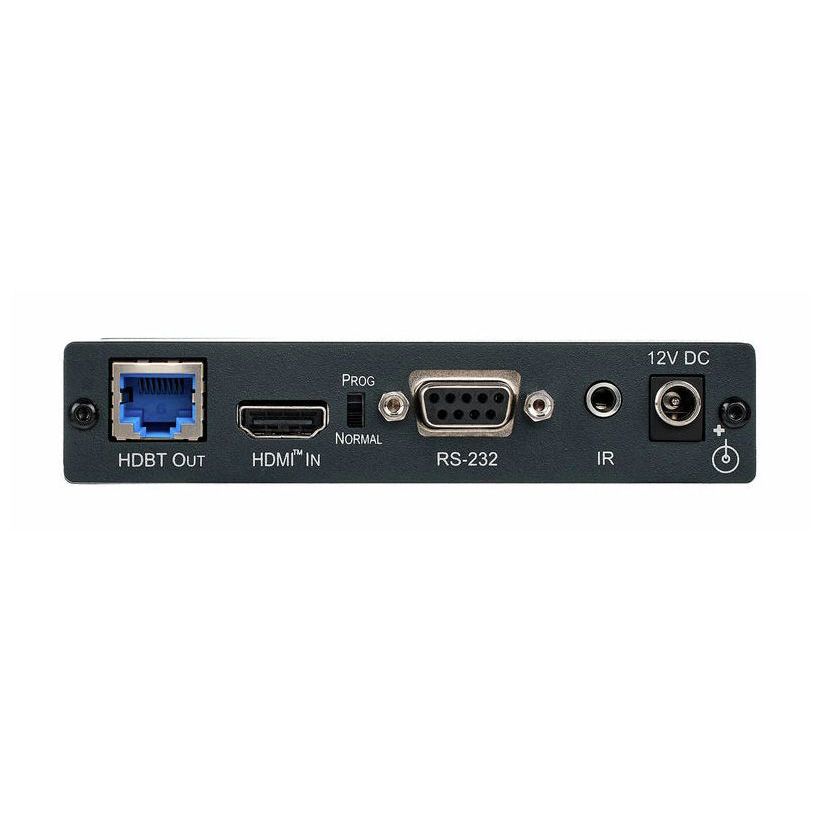

• Input: 1 x HDMI socket
• Output: 1 x RJ45 socket for HDBaseT TP
• Data ports: 1 x 3.5 mm socket for IR extension / 1x DB9 socket
• Max. range: up to 40 m with 4K @60 Hz (4:2:0) / up to 70 m with Full HD (1080p @60 Hz, 36 bpp) / HDBaseT 1.0 compliant (values only apply when using Kramer HDBaseT cables)
• Video: up to 10.2 Gbps bandwidth (3.4 Gbps per graphics channel) / up to 4K UHD @60 Hz (4:2:0) 24 bpp resolution / HDMI 2.0 and HDCP
• 2.2 Compliant
• RS-232 extension: 300 to 115,200 bit/s
• RS-232 control: 115,200 bit/s

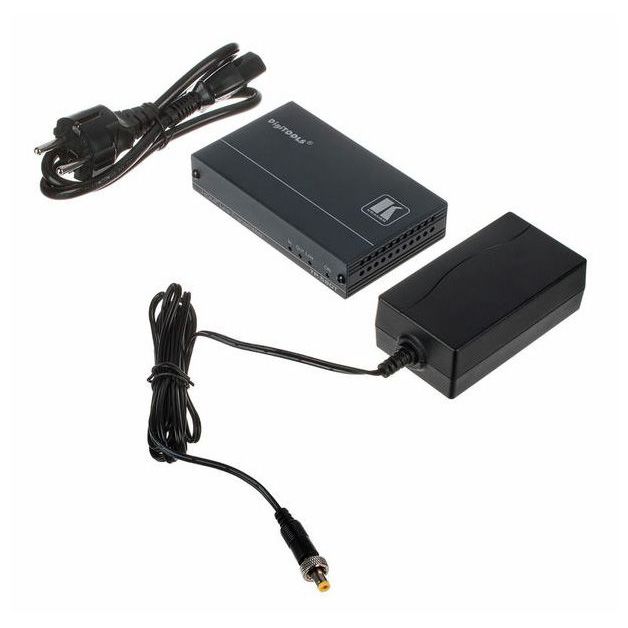

• Power supply: 12 V DC / 2 A
• Power consumption: 12 V DC / 275 mA
• Dimensions: 12 x 7.15 x 2.44 cm
• Weight: 0.2 kg
