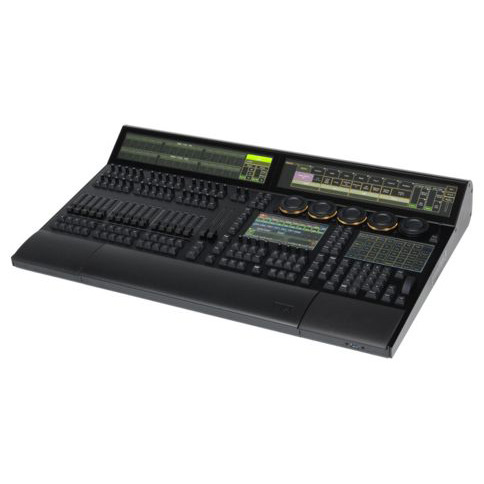

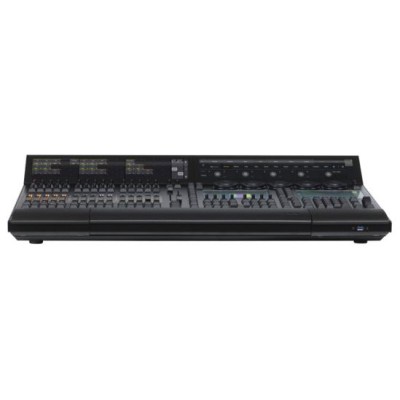

MA Lighting grandMA3 light CRV Demo

Slight signs of wear, full warranty

• Real-time control of up to 250,000 parameters per session in combination with grandMA250,000 processing unit
• 6 DMX outputs
• 1 DMX input
• 2 Internal letterbox multi-touch screens
• 2 integrated multitouch command screens
• 4 external multi-touch screens can be connected
• 41 rotatable RGB-backlit encoders
• 5 backlit dual encoders
• 15 motorised and backlit 60mm faders
• 60 independent playbacks
• 16 assignable x-keys
• Integrated keyboard drawer
• Built-in uninterruptible power supply (UPS)
• 2 backlit and motorised A/B 100mm faders
• Individually backlit, dimmable and low-noise (clickless) buttons

Technical specifications:

• Parameter: 8.192 (HTP/LTP)
• Parameter Mode2: 4.096 (HTP/LTP)
• Supply voltage: 100-240 V / 50/60 Hz
• Power: max. 300 VA
• Dimensions (W x D x H): 811 x 539 x 169 mm (closed drawer)
• Weight: 25 kg

Connections:

• 1x Power Twist TR1
• 3x etherCON/RJ45
• 6x DMX512-A Out (5pin XLR female)
• 1x DMX512-A In (5-pin XLR male)
• 1x MIDI In (5-pin DIN female)
• 1x MIDI Out (5-pin DIN female)
• 1x Linear Timecode In (3-pin XLR female)
• 1x Audio In (3-pin XLR female)
• 1x GPI General Purpose Interface (D-SUB DE9 female) for remote control
• 4x DisplayPort 1.2 for external screens
• 2x S/PDIF In and Out
• 3x USB 2.0 (Type A)
• 3x USB 3.0 (Type A)
• 2x LED desk light (4-pin XLR female)

Contents of delivery:

• One dust cover
• Two MA LED desk lights
• MA Magnetic plate for easylabeling of 15 faders
