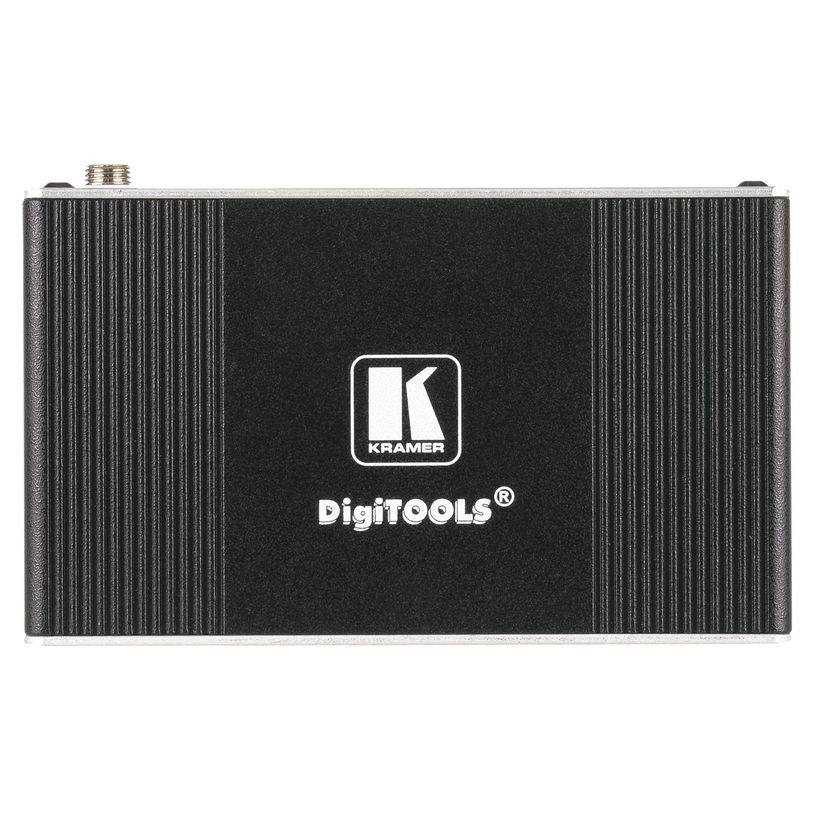

Kramer VS-211X 4K HDR HDMI Switcher

• Plug & Play Auto Switcher: automatically plays the switched source signal on the connected display according to user-configured settings such as priority or last connected input
• If the user switches manually by pressing a button, the automatic switchover is overridden
• HDMI signal switching: HDCP 2.2 compatible, supports Deep Colour, x.v.Colour, CEC, lip sync, uncompressed HDMI audio channels, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D in accordance with HDMI 2.0
• Multi-channel audio switching: up to 32 channels with uncompressed digital stereo signals to support studio-quality surround sound
• I-EDIDPro Kramer Intelligent EDID processing: the intelligent EDID handling, processing, blocking and pass-through algorithm ensures plug-and-play operation for HDMI source and display systems

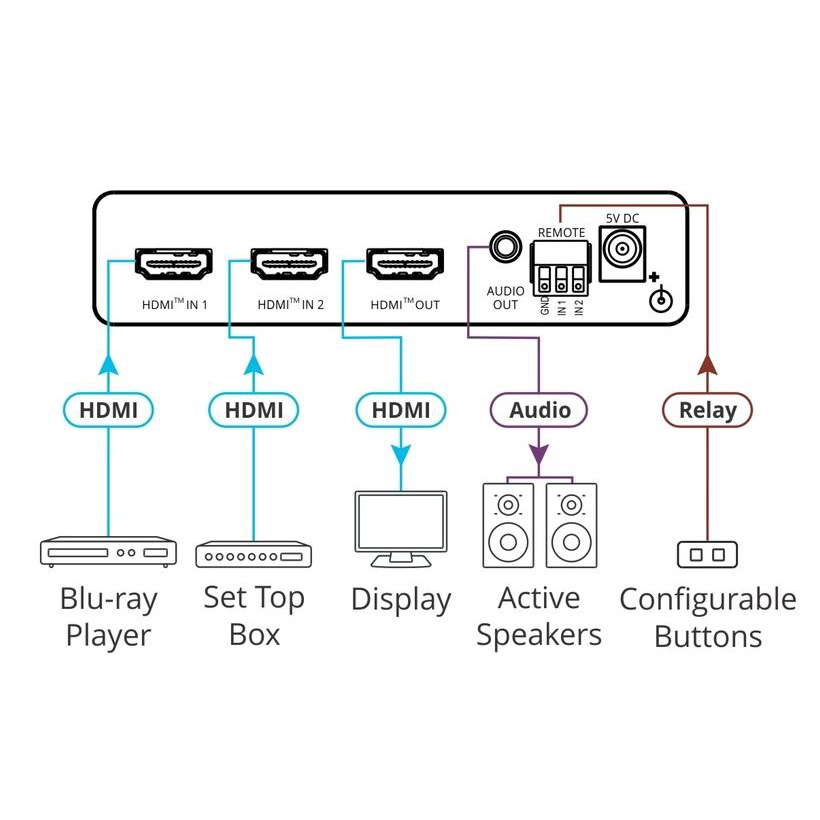

• Audio De–embedding — The digital audio signal passing–through to the HDMI output, is de–embedded, converted to an analog signal and sent to the stereo unbalanced analog audio output. This enables playing the audio on locally connected speakers, in parallel to playing it on the speakers connected to the AV acceptor device (such as TVs with speakers)

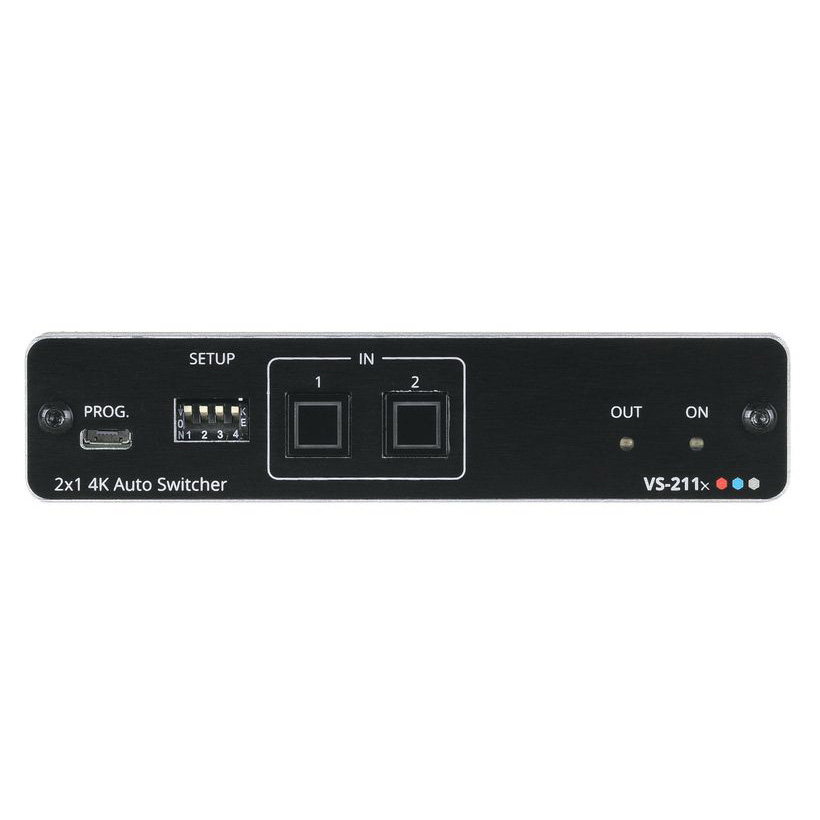

• Simple Switching Operation — Local buttons or remotely connected contact–closure buttons for flexible user input selection and switching control.
• Status LED indicators for HDMI ports facilitate local maintenance and troubleshooting

Technical specifications:

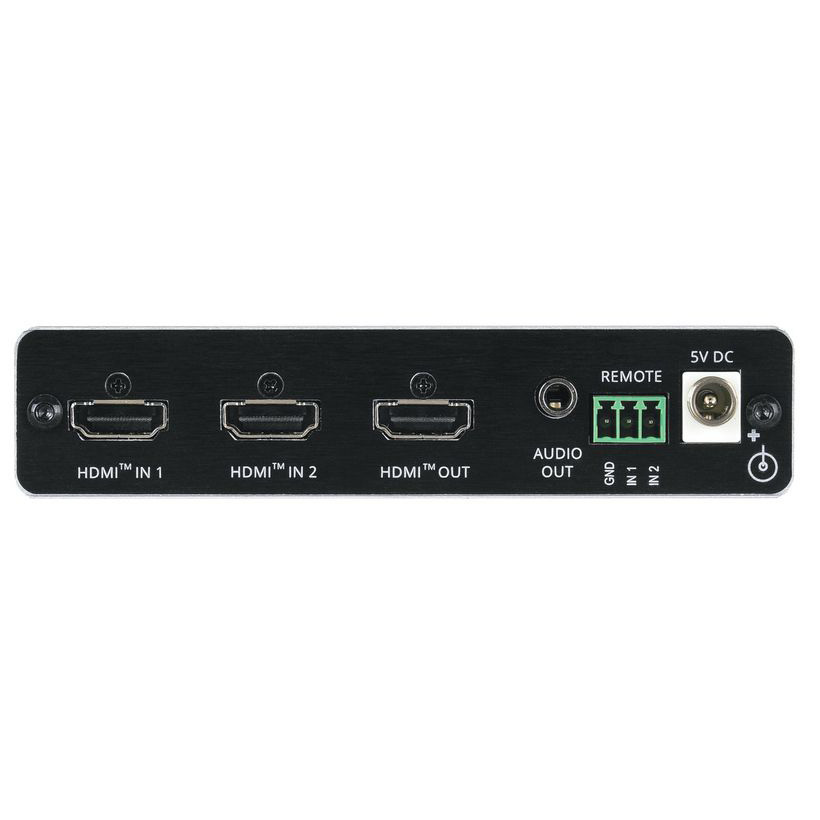

• Input: 2x HDMI
• Output: 1x HDMI
• 1 unbalanced stereo audio 3.5 mm mini jacks
• Data ports: Remote normally open contacts, on a 3-pin printed circuit terminal block
• Max. data rate: 17.82 GBit/s (5.94 Gbit/s per graphics channel)
• Maximum resolution: 4K@60Hz (4:4:4)
• Conformity: HDR10 according to HDMI 2.0, HDCP 2.2
• Power supply: 5 V, 2 mA
• Power consumption: 500 mA
• Housing size: DigiTOOLS
• Material: Aluminium
• Cooling: Convection
• Dimensions (W x D x H): 12 x 7.15 x 2.44 cm
• Weight: 0.2 kg
