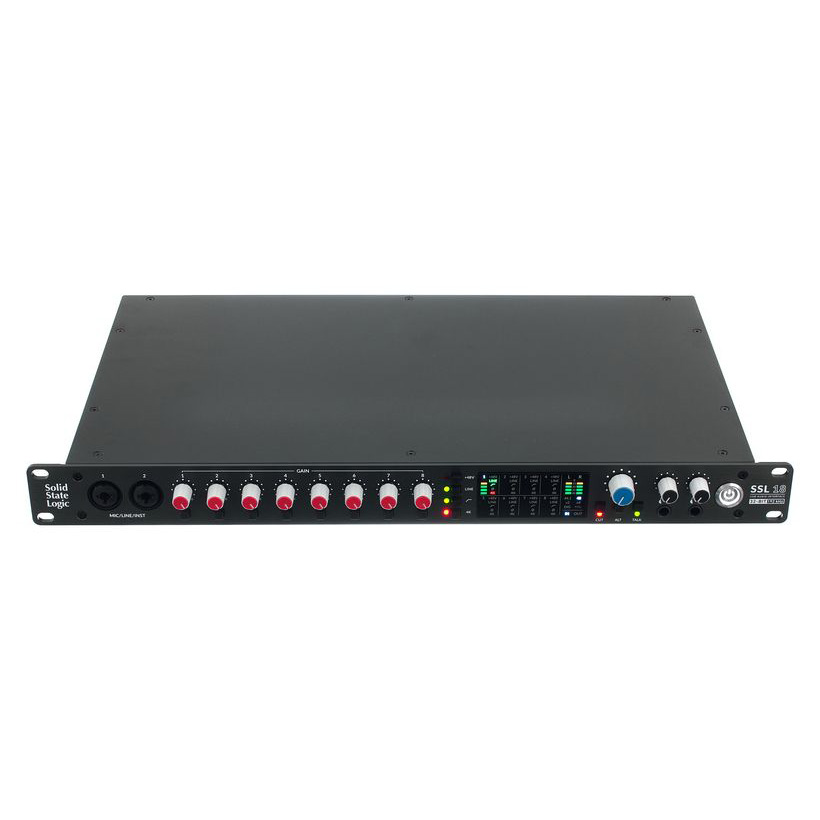

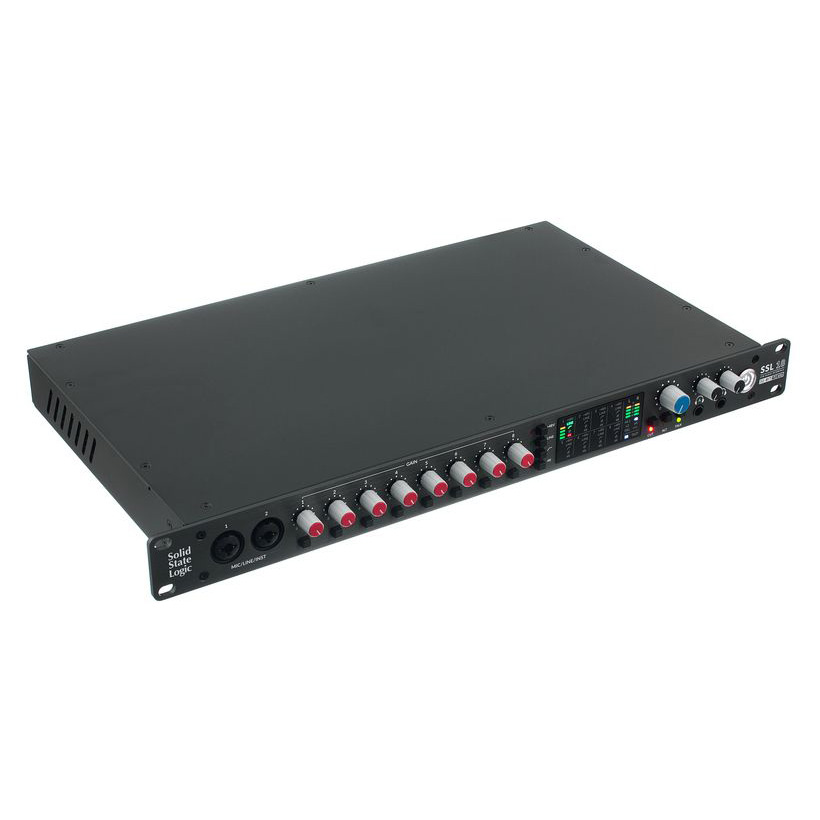

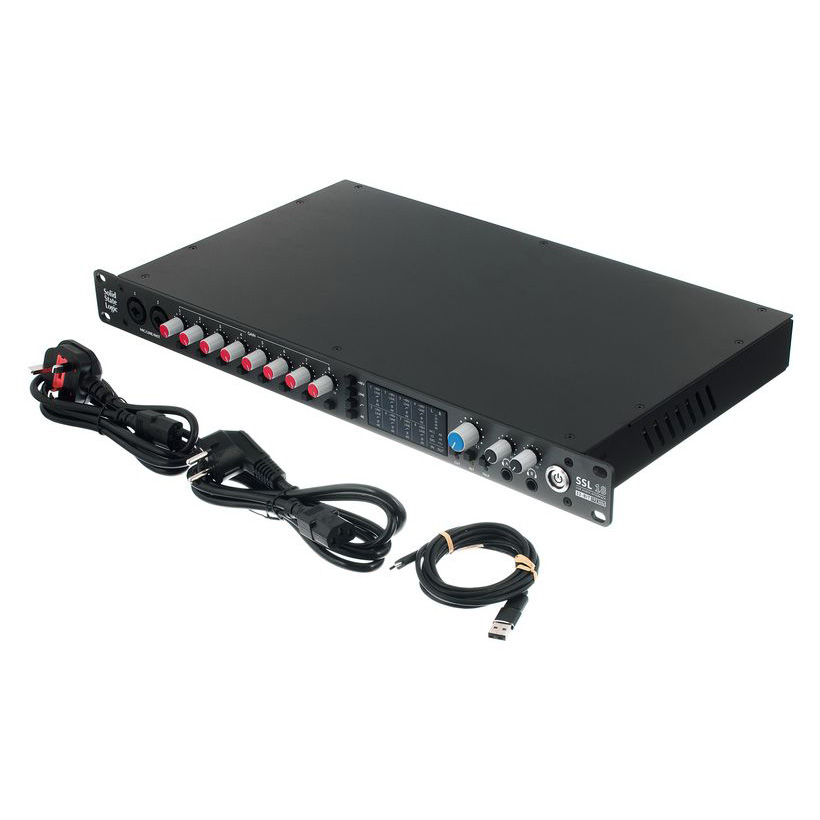

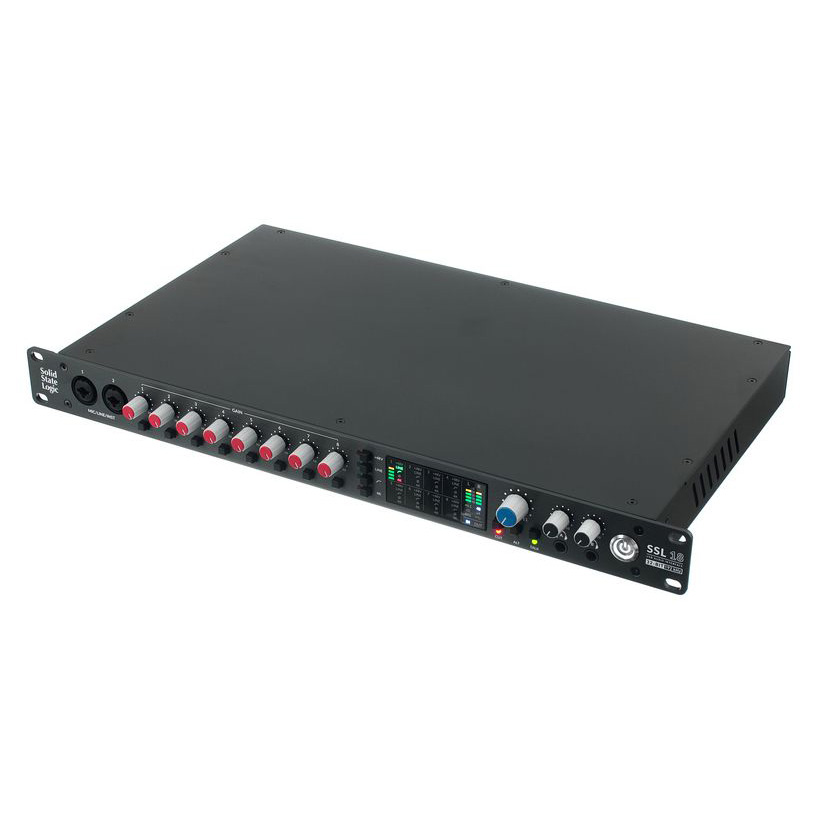

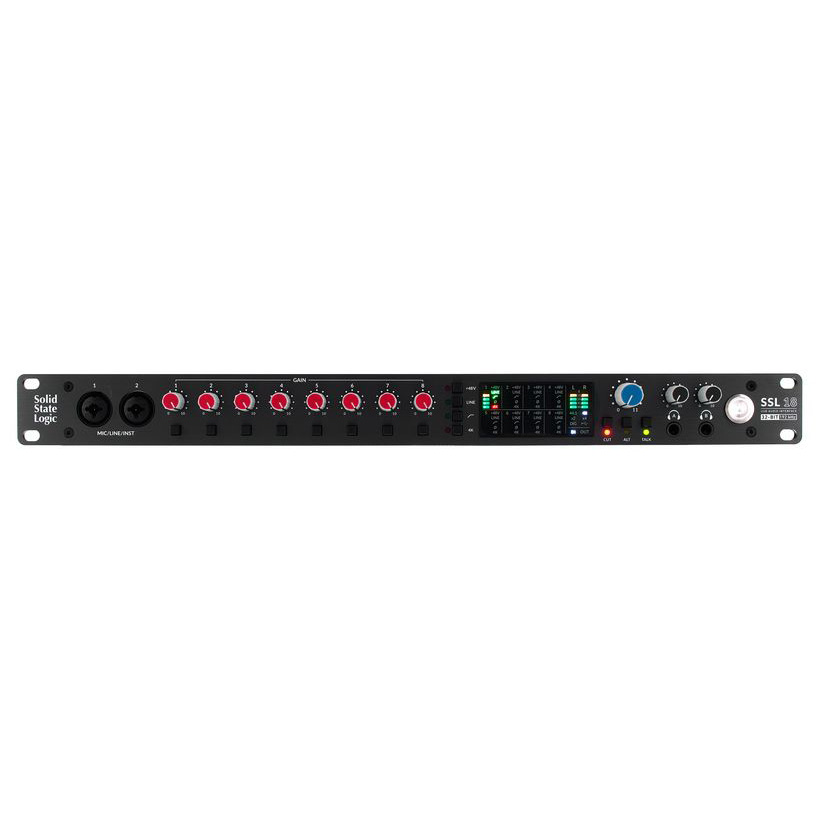

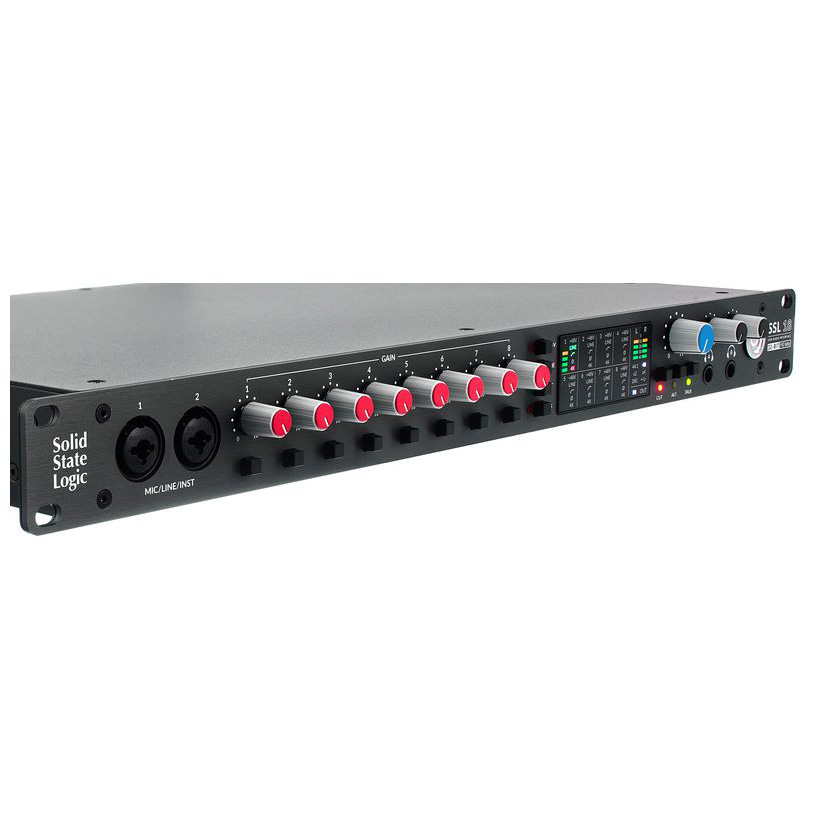

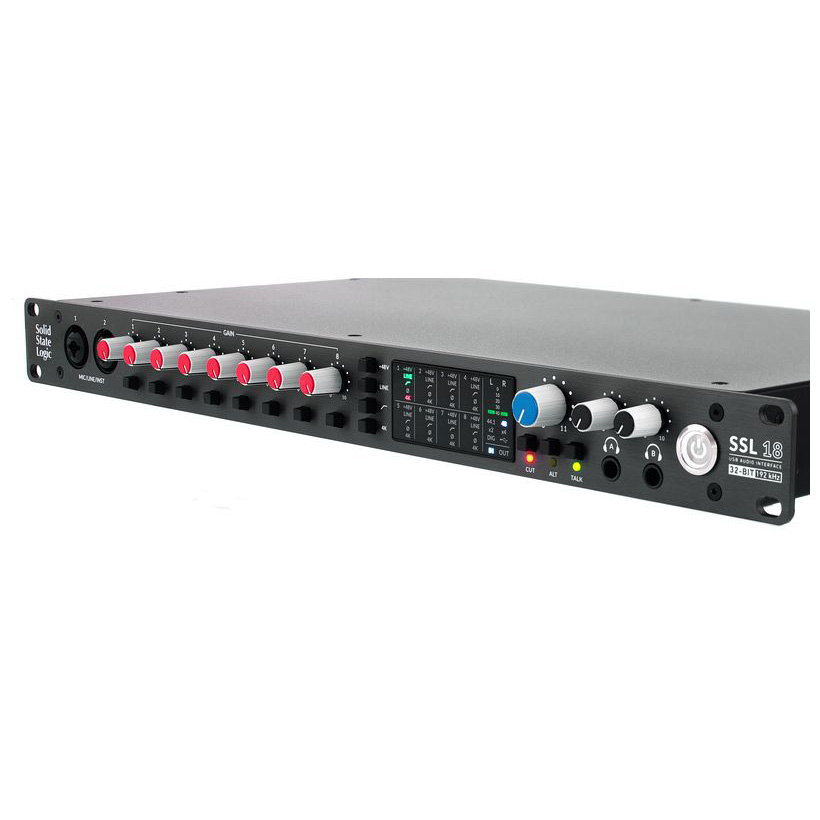

SSL 18

• 32-bit / 192 kHz
• +24 dBu operating level for all inputs and outputs
• 120 dB dynamic range in all inputs and headphone outputs
• 125 dB dynamic range on monitor and line outputs
• Eight microphone preamps (67 dB gain range, -130.5 dBu On, +48 V, 120 dB dynamic range, HPF, 4K switch)
• Inputs 1/2 switchable to instrument level
• Talkback input with built-in listen mic compressor (can also be used as line in for stems with LMC)
• Legacy ‘4K’ switch for sound colouring modelled on the SSL 4000 series
• Stereo loopback with selectable loopback source
• Includes SSL Production Pack software
• Control via free SSL 360° software application (incl. SSL18 Low Latency Mixer Tool)
• Dimensions (W x H x D): 482.6 x 43.6 x 294 mm
• Weight: 4 kg

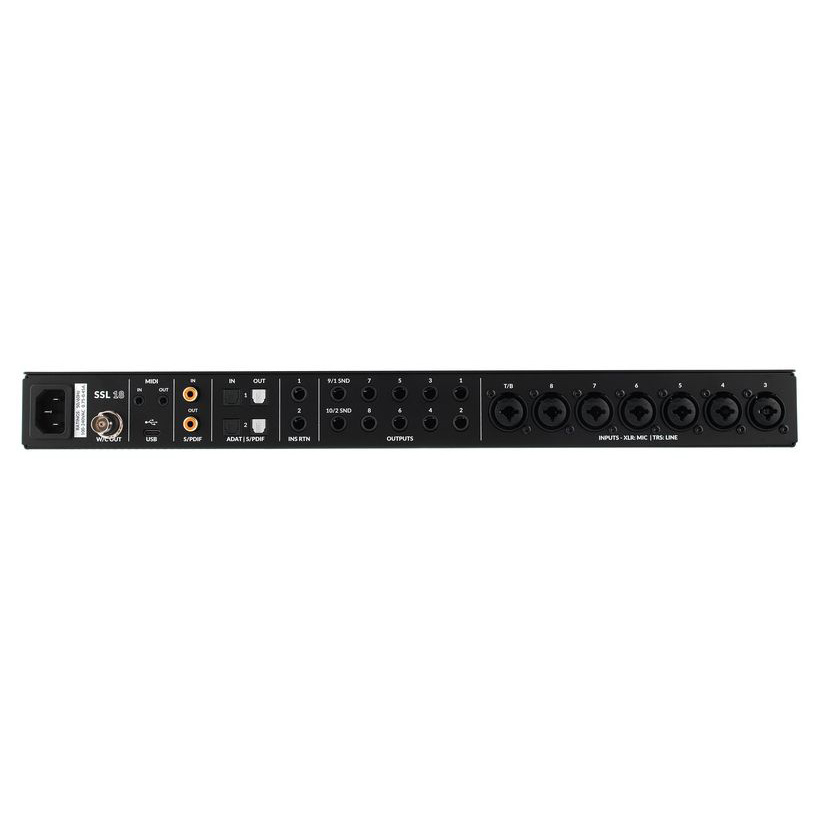

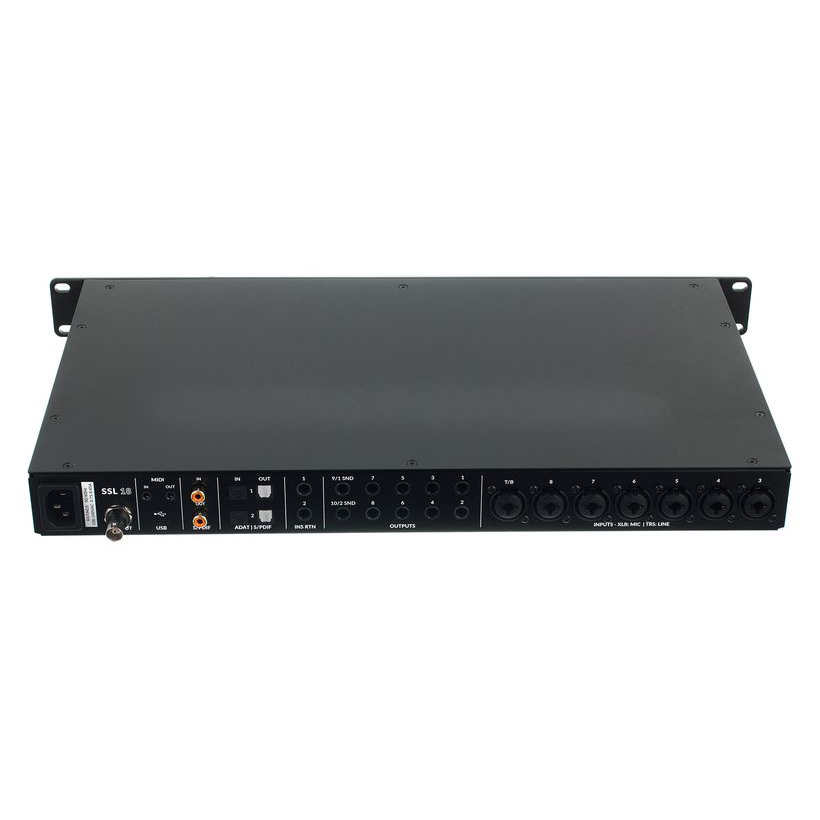

Connectors:

• Two Mic/instrument/line combo inputs: XLR / 6.3 mm jack
• Eight mic/line combo inputs: XLR / 6.3 mm jack
• Talkback mic combo input: XLR / 6.3 mm jack
• Two ADAT inputs 44.1 / 48 kHz (eight channels @ 96 kHz)
• Two S/PDIF inputs (coaxial or optical)
• Word clock input: BNC
• MIDI input and output: 3.5 mm mini jack
• Line outputs: Ten 6.3 mm jacks balanced (+9 dBu / +24 dBu option for outputs 1/2 and 3/4, 9/10 send)
• Return: Two 6.3 mm jacks
• Stereo headphone outputs - independently controlled with three impedance settings (standard / high sensitivity / high impedance): Two 6.3 mm jacks
• USB C
